Features & Equipment specifications
1Advanced processing and treatment capabilities
Ultra-high density plasma of 2.45 GHz makes
high-speed treatment possible
high-speed treatment possible
2Low running costs
Can also use clean dry air
(CDA) for treatment
Rapid start-up⇒Plasma stabilizes within one
second of switching on the equipment
(CDA) for treatment
Rapid start-up⇒Plasma stabilizes within one
second of switching on the equipment
3Compact design, lightweight power source
Integrated power, controls and gas unit
Can be installed and used anywhere with
just the power source and CDA
Can be installed and used anywhere with
just the power source and CDA
4Handles localized treatment
Handles pinpoint plasma irradiation
Treatment width
up to 10 mm
Utility
Power, Gas (Air), Exhaust
Applications
| Field | Usage |
|---|---|
| LCD | Cleaning of LCD terminals (improves adhesion to ACF) |
| Automotive | Removes oil from engine parts and other components to improve adhesion during assembly |
| Other | Wash prior to sealing of electronic parts |
Treatment data

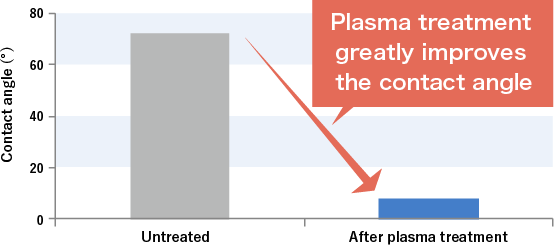

Data on contact angle of LCD terminal
Improves strength of
metal plate bonding

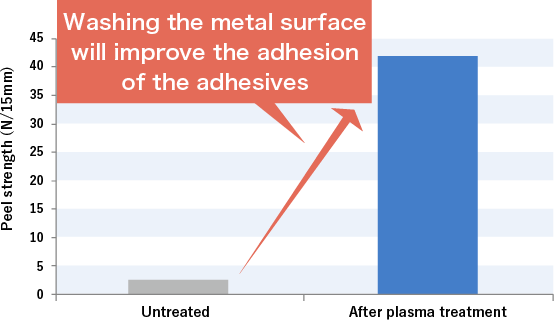

Peel strength measurement data
