Features & Equipment specifications
1Glow discharge treatment
Achieves high-level of uniformity and doesn’t damage film
(no particles generated)
(no particles generated)
2Advanced treatment performance
Proven performance at speeds of 100 m/min and above
3Extensive lineup
Works at widths of up to 2500 mm, 1- or 3-headtype
4Ambient-pressure process that doesn’t require a vaccum
Easily installable in existing manufacturing lines
Widths handled
up to 2500 mm
Treatment speed
up to 100 m/min
Utility
Power, Treatment gas (N2, CDA), Exhaust, Cooling water
Applications
| Field | Usage |
|---|---|
| Optical films (polarizing plates, etc.) |
Used as a pretreatment for functional membrane coating 1. Improves the adhesion of the coating membrane 2. Enables use of thinner coating |
| PI、CCL |
Treats PI film, improves the adhesion of adhesives and with other films |
| Other films |
・Pretreatment for printing of PET, PP, PE and other films ・Improves wettability of fluorine film and other films, etc. |
Basic treatment performance

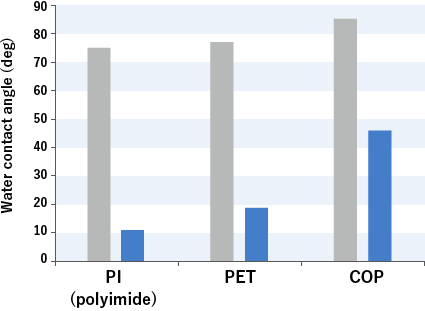

Data on contact angle with other films
Untreated
After plasma treatment
*Treatment speed: 30 m/min

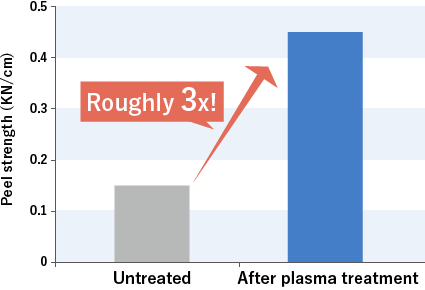

Adhesion strength with polyimide and epoxy adhesives
